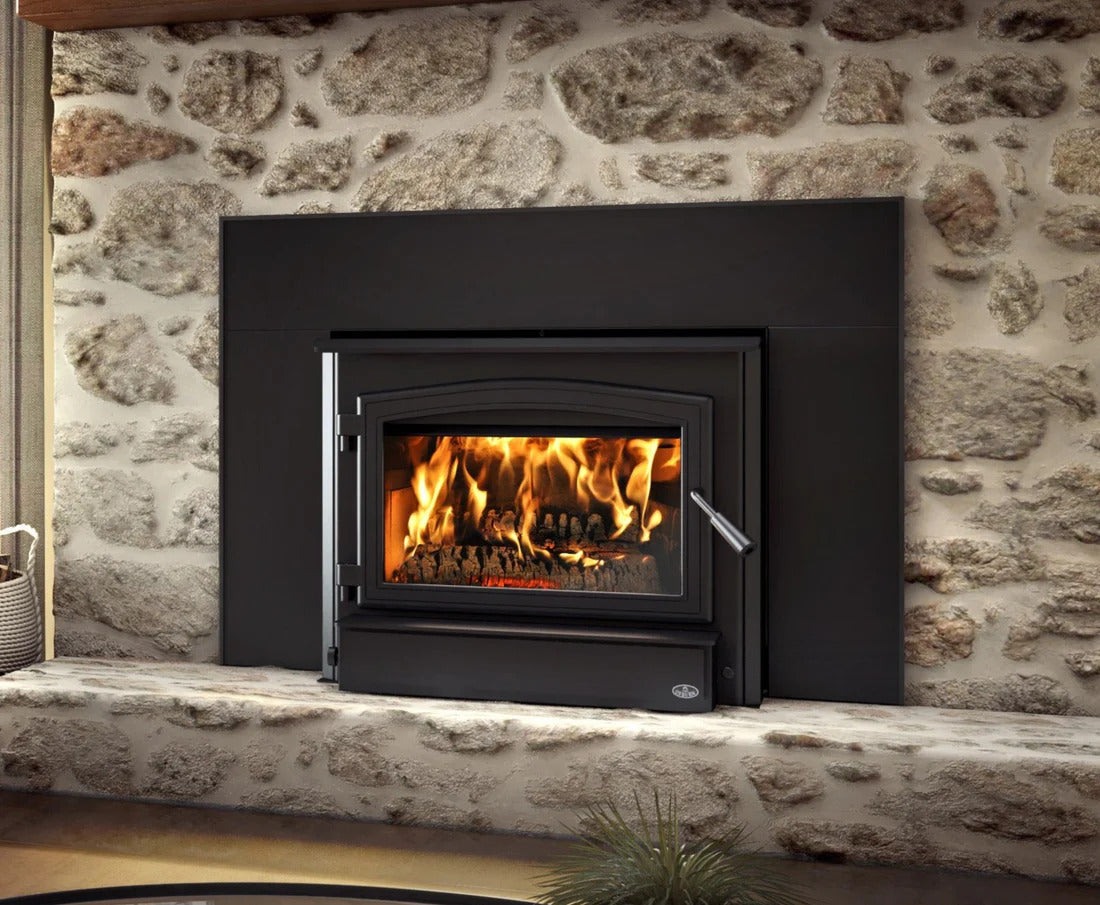

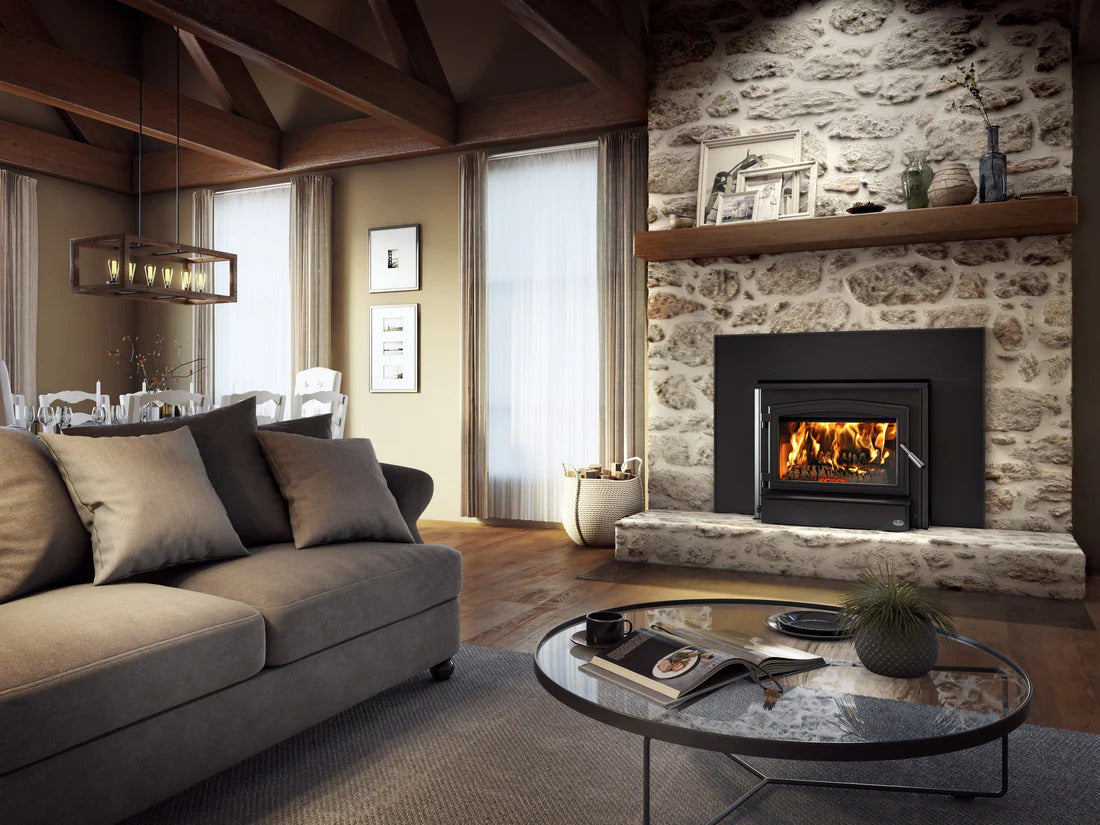

Introducing the Osburn 3500 Wood Insert with Variable Speed Blower
Experience the perfect blend of innovation and tradition with the Osburn 3500, a wood insert designed to redefine your home heating experience. As winter settles in, this powerhouse of warmth and elegance ensures your space remains inviting and comfortable. More than just a fireplace, the Osburn 3500 is a masterpiece of engineering that harmonizes efficiency, style, and cutting-edge technology to transform your home into a haven of relaxation.
Unmatched Performance and Design
The Osburn 3500 seamlessly combines contemporary aesthetics with advanced functionality. Its large glass viewing area showcases the mesmerizing dance of flames, creating an ambiance of warmth and tranquility. Equipped with a Variable Speed Blower, you have full control over heat distribution, ensuring customized comfort tailored to your preferences. With the Osburn 3500, you're not just heating your home—you’re making a statement of sophistication and efficiency.
Key Benefits:
-
Superior Heating Efficiency: Provides consistent, high-performance heating to keep your home cozy.
-
Elegant Ambiance: Enhances your living space with the captivating glow of a real wood fire.
-
Cost-Effective Solution: Lowers heating bills by maximizing the natural heat of wood.
-
Custom Comfort Control: Adjust the blower speed to achieve the perfect warmth.
-
User-Friendly Operation: Intuitive controls for effortless functionality.
-
Energy Independence: Reduces reliance on traditional heating methods, promoting sustainability.
-
Enhanced Home Atmosphere: Creates a welcoming environment ideal for relaxation and gatherings.
Required Accessories for Complete Installation:
- Faceplate
- Faceplate Trim
- Door Overlay
Specifications:
-
Combustion Technology: Non-catalytic
-
EPA Certification: 2020 approved
-
Max Log Length: 22"
-
Loading Orientation: Over width
-
Chimney Diameter: 6"
-
Minimum Chimney Height: 15'
-
Baffle Type: C-Cast
-
Mobile Home Installation Approved: No
-
Shipping Weight: 540 lbs (245 kg)
-
Door Type: Single, glass with cast iron frame
-
Glass Type: Ceramic
-
Glass Dimensions: 18 7/8" W x 11 3/4" H
-
Glass Air-Wash System: Yes
-
Premium Blower Included: 144 CFM
-
Overall Dimensions: 24 7/8" H x 30 3/8" W x 29" D
-
Firebox Dimensions: 12 7/8" H x 22 7/8" W x 20 1/8" D
-
Firebox Lining: Refractory bricks for better heat distribution
-
Secondary-Air System: Stainless steel for improved combustion
-
Steel Thickness: 3/16" (body), 3/8" (top)
Clearances to Combustibles (inches):
-
Top Clearance: 84"
-
Side Mantle to Unit: 9"
-
Top Mantle to Unit: 27"
-
Side Wall to Unit: 19"
-
Top Shelf to Unit: 27"
Performance Overview:
-
Fuel Type: Dry cordwood
-
Recommended Heating Area: 1,000 - 2,700 sq. ft.
-
Overall Firebox Volume: 3.5 cu. ft.
-
EPA Loading Volume: 2.84 cu. ft.
-
Maximum Burn Time: 10 hours
-
Maximum Heat Output: 110,000 BTU/h (32.2 kW)
-
Overall Heat Output Range: 18,100 - 49,500 BTU/h
-
Average Efficiency: 71% (HHV), 76% (LHV)
-
Optimum Efficiency: 77%
-
Particulate Emissions: 1.32 g/h
-
Average CO Emissions: 92 g/h
Certifications & Safety Standards:
-
USA Emissions Standard: EPA Approved
-
Canadian Emissions Standard: CSA B415.1-10
-
Safety Standards (USA): UL 1482, UL 737
-
Safety Standards (Canada): ULC S628
-
Tested & Certified: By an accredited laboratory (CAN/USA)
-
Warranty: Limited Lifetime
Redefine Comfort and Efficiency
The Osburn 3500 Wood Insert isn’t just a heating solution—it’s an investment in quality, performance, and timeless elegance. Whether you're looking to enhance your home's atmosphere, reduce energy costs, or enjoy the beauty of a real wood fire, this premium insert delivers. Experience the warmth and reliability of the Osburn 3500 and transform your living space into a sanctuary of comfort and style.
